How To Fit Internal Doors

This article will teach you how to fit internal doors. You will learn how to fit a new, internal door in the same space as your old one. This is assuming you already have an existing door frame. One important thing we learned from having to buy internal doors is that they don’t come with ‘door furniture’. You have to purchase things like hinges, latches and handles separately, so budget for all these, as some of them can be pretty expensive. Beware that they come in separate packages, so make sure you have all you need before you leave the shop. See other useful DIY tutorials at this page.


Time frame: Fixing a door will take you about 2 hours to complete.
Difficulty: 6 out of 10


Essential Tools you will need to fit internal doors:

Butt hinges

Screwdriver

Chisels

Tape measure

Wood plane

Hammer

Drill and drill bits

Spirit level

Latch and handle

Pencil

You may need a doorstop too.

Method of fitting an internal door



1. Purchase a new door which is the same depth as the old one, or you may find yourself having to remove and replace the door stop. If the new door is slightly bigger, you can always plane it down a bit. Remove your old door, leaving your old hinges on the frame if they’re still in working condition. If not, remove them and replace them with new hinges in the same place as the old ones.

2. With the door standing upright against the existing frame, make sure that there’s a 3mm gap between the two. You can use your existing hinges to measure this space on the hinges’ side of the door, by just leaning the door against them.

3. On the opposite side – the latch and handles’ side – measure a 3mm gap between the door and the existing frame and draw a line from the top to the bottom (on the door). Then measure that there’s a 3mm gap from the top and the bottom of the door frame. This means your door should be 3mm smaller than the middle part of your door frame, (which is the door stop) on both sides and on the top and bottom.
4. Take the door outside. Put it on its side and plane it evenly from top to bottom, until you get to the pencilled mark.
5. Bring your door back inside and place it in the door frame once it’s all planed out. With your pencil, draw a line at the bottom and top lines, of where your hinges will be. If you’re putting on new hinges, you can put the door on its side and use the hinges to mark around the place it should be.
how_to_fit_internal_doors
       image. Where to mark door for hinge. See pencil mark on front of door.

6. With your chisel and hammer, cut a space into the door for your hinges.  Be careful not to split the wood. You’ll need to make several, little horizontal cuts into the wood between the two pencilled lines. Remember to make the cuts the exact depth as the hinges. To help with this, it may be a good idea to put a little mark on your chisel so you know your far to cut. Stop cutting when you get to this mark. When you’ve done this, use the blade of the chisel sideways (from the front of the door) and shave off the cut, little pieces of wood, making a bed for your hinge to fit into.
how_to_fit_internal_doors
image. Cut a space into the door for your hinge, with a chisel and hammer.

7. Place the door against the hinges and pre-drill holes for the screws. Fit both your hinges.

Fitting the latch on your internal door



how_to_fit_internal_doors

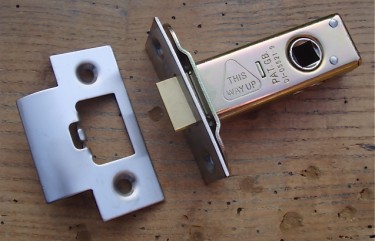

Door latch image

1. To fix your door latch, close the door and place the latch on the front of it. Line the latch up with the existing plate (this is the part that the latch locks into when the door is closed) on your old door frame, and mark around it. Take this mark all around, from the front of the door, round the face, and the back.
how_to_fit_internal_doors
image. To fit the latch, mark position on door first.

how_to_fit_internal_doors
image. Draw a line all around the door, in the position of the latch.



2.Draw a vertical line in the middle of the door face as in the picture above. Now measure the latch and mark this on the door. Also, measure the distance between the end of the latch and the hole in the middle of it (picture above). Mark this on the door too. Get your flat drill bit and measure the length from the end of the latch to the hole that’s in it. Mark that distance on your drill bit because you don’t want to exceed that when you make the hole.

3. Place the drill (with the flat drill bit secured) on the vertical line you made on the face of the door, and drill to the mark you made previously. This is the point at which the hole is situated on your latch.
4. Also drill a hole (at the spot you marked -where the hole is on the latch) on the back and on the front of the door. Do this carefully, as doors are usually made with material that split easily.
5. Carefully push the latch into the hole you’ve made on the face of the door. Make sure that it’s straight. Draw a line around the latch (on the face of the door) like in the image below. (The hole which is supposed to be at the front of the door is absent in this picture). Remove the latch and put it to one side.
how_to_fit_internal_doors
image. Draw a line around the door, where the latch is going to be placed.



6.Carefully chisel your way around the line you marked for the latch. Remember to chisel the right depth (according to the latch) into the wood. When this is done, replace the latch and screw in securely. The latch should sit smoothly on the surface of the door face. There should be no difference in depth between the two.

7. Place your spindle through the hole in the door, and through the latch you’ve just inserted. (You should’ve been given a spindle with the pack when you bought your door furniture. It looks like this:
how_to_fit_internal_doors
If your spindle is slightly long, it can be cut down to size with a suitable saw. After this is done, put your handles on, making sure they’re fitted in the right place. Screw in your handles with a hand-held screwdriver to be on the safe side. Close the door and make sure it locks properly. If not, you may have to remove the plate on the door frame and readjust it slightly to fit.



Get rid of your old door responsibly and enjoy!  And for door fitting supplies, check out sliding doors at Barrier Components
